SKYSHALO Concealed Hinge Jig, Hinge Drilling Tool Set, PA66 Nylon and Steel Material, Suitable for Face Frame Cabinet Cupboard Door Hinges, DIY Tools for Cabinet Door Installation

<div> <h3><strong>Product Description</strong></h3> <div><strong>SKYSHALO Door Hinge Jig, Empowering precise and fast woodworking drilling</strong></div> <div> <div>The hinge jig features a stable structure that remains resistant to deformation even with long-term use. It enables precise drilling without the need for marking lines, thanks to multiple limiting designs like the C-type clamp, limit accessories, and adjustable dial. Overall, it offers a user-friendly experience and simple operation, making it the ideal companion for efficient and stable woodworking drilling in various scenarios.</div> </div> </div> <div> <div> <div><strong>Multifunctional Hinge Hole Opener</strong></div> <div> <div>Our hinge jig features a main panel made of high-strength engineering PA66, and carbon steel + YG8 hard alloy for the drilling tools. Its stable structure can withstand substantial weight and pressure, extending its lifespan. It can also maintain stability in various complex environments.</div> </div> </div> <div> <div><strong>Multiple Limitations for Precision</strong></div> <div> <div>This door hinge jig boasts an adjustable horizontal positioning knob, preset holes at 3" /4" for vertical distance, a bracket for securing the main body and drill bit, and a C-type fixing clamp. These multiple limitations allow for quick and precise hinge-hole positioning.</div> </div> </div> <div> <div><strong>Simple and Fast Installation</strong></div> <div> <div>This hinge jig kit is user-friendly and easy to install, requiring no professional training. It eliminates complex setup steps and tedious installation processes, saving time and increasing work efficiency. It also reduces errors during operation, ensuring correctness and drilling precision.</div> </div> </div> <div> <div><strong>Fits 1.38'' and 1.02'' Hinges</strong></div> <div> <div>This concealed hinge jig is suitable for 1.38'' and 1.02'' hinges, meeting the hinge hole needs for cabinets, doors, wardrobes, bookshelves, etc. Equipped with a 1.38''/35mm drill bit and depth stop, it features a drilling axis hole function. The hinge screw distances are 46mm, 48mm, or 52mm.</div> </div> </div> <div> <div><strong>Precision Components</strong></div> <div> <div>The cabinet hinge jig includes complete accessories, simplifying hinge hole operations and providing you with a more convenient drilling experience.</div> </div> </div> <div> <div><strong>Main Body Locking Design</strong></div> <div> <div>The hinge hole opener's main body features a locking design on the back for easy storage. Its accessories can be securely stored, making it portable and space-saving. The hexagonal honeycomb structure ensures stability and strong compression resistance, evenly distributing force points and preventing damage.</div> </div> </div> </div> <div> <h3><strong>Specifications</strong></h3> <div>Item Model Number: SXRJL-2301</div> <div>Compatible Hinge Types: Φ1.02''/26mm and Φ1.38''/35mm hinges</div> <div>Product Color: Vibrant Orange</div> <div>Main Materials: PA66 Nylon (Main Panel and Stand) + Steel</div> <div>Product Weight: 1.54 lbs / 0.7 kg</div> <div>Product Dimensions: 8.86x3.74x3.35 inch / 225x95x85 mm</div> </div> <div> <h3><strong>Package Content</strong></h3> <div>1 x Main Panel</div> <div>1 x Φ35mm Hole Cutter</div> <div>1 x Hex Wrench</div> <div>1 x Φ2mm Twist Drill Bit</div> <div>1 x Positioning Rod</div> <div>1 x Stand</div> <div>1 x Positioning Ring</div> <div>1 x C-Type Clamp</div> <div>2 x 26mm Hinge Hole Positioning Assistants</div> <div>1 x User Manual</div> </div>

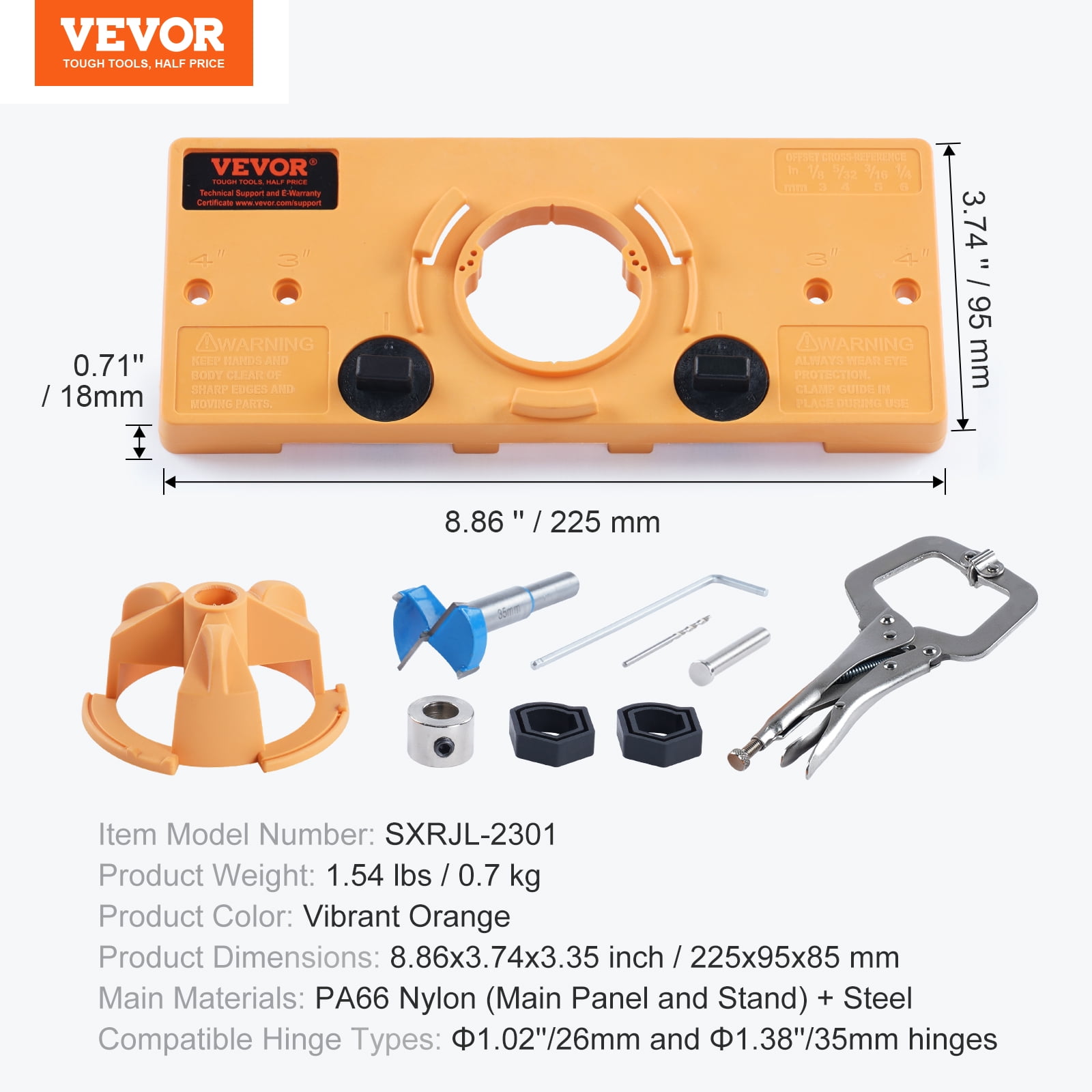

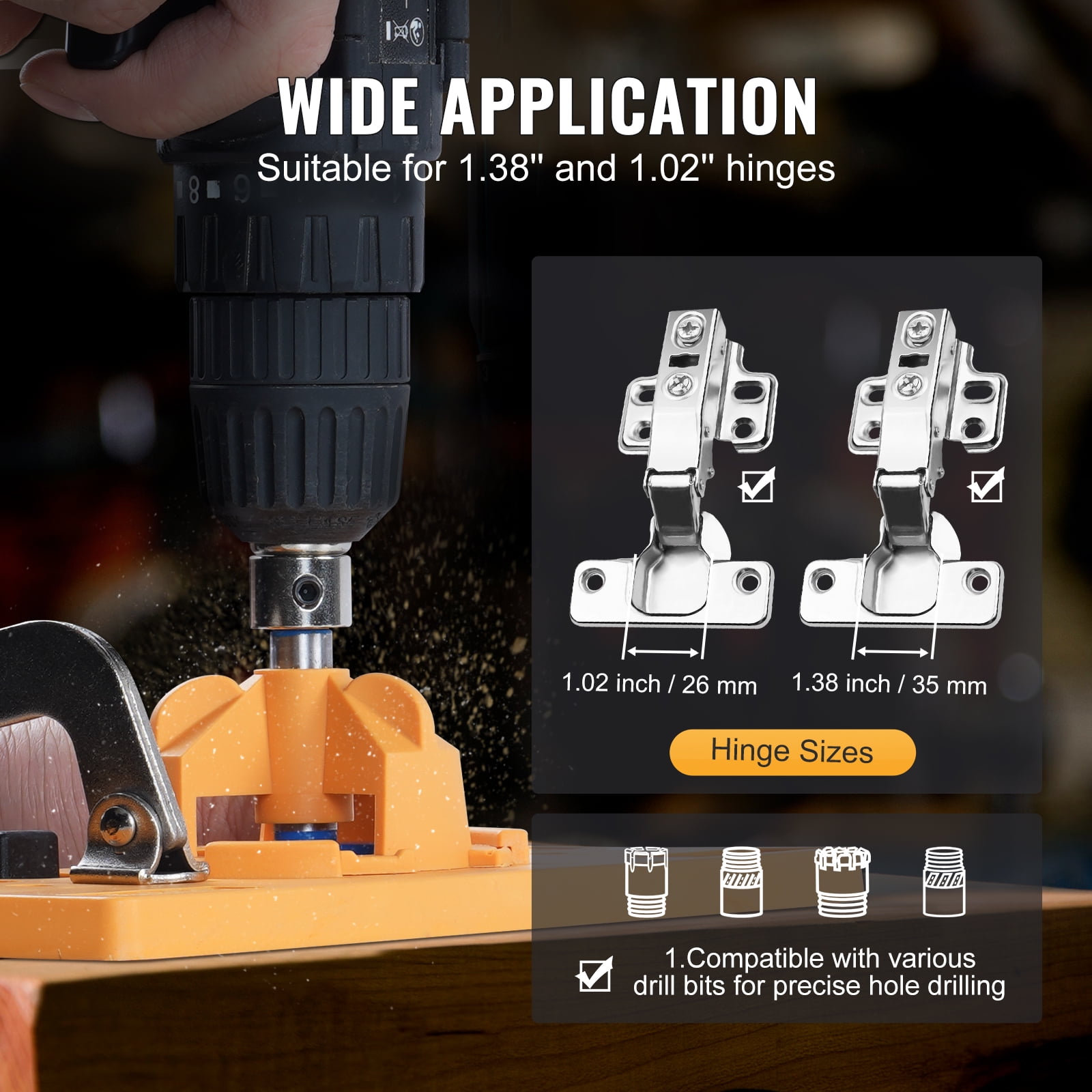

• Wide Application: The hinge jig suits 1.38'' and 1.02'' hinges. It is primarily designed for precise hinge hole positioning in wood and can be used with power tools like drills for easy angled drilling. It is ideal for everyday household equipment installations and repairs, such as cabinets, wardrobes, and door locks. It has a 1.38''/35 mm drill bit for drilling holes. The distances between hinge screws are 1.81'' (46 mm), 1.89'' (48 mm) or 2.05'' (52 mm).

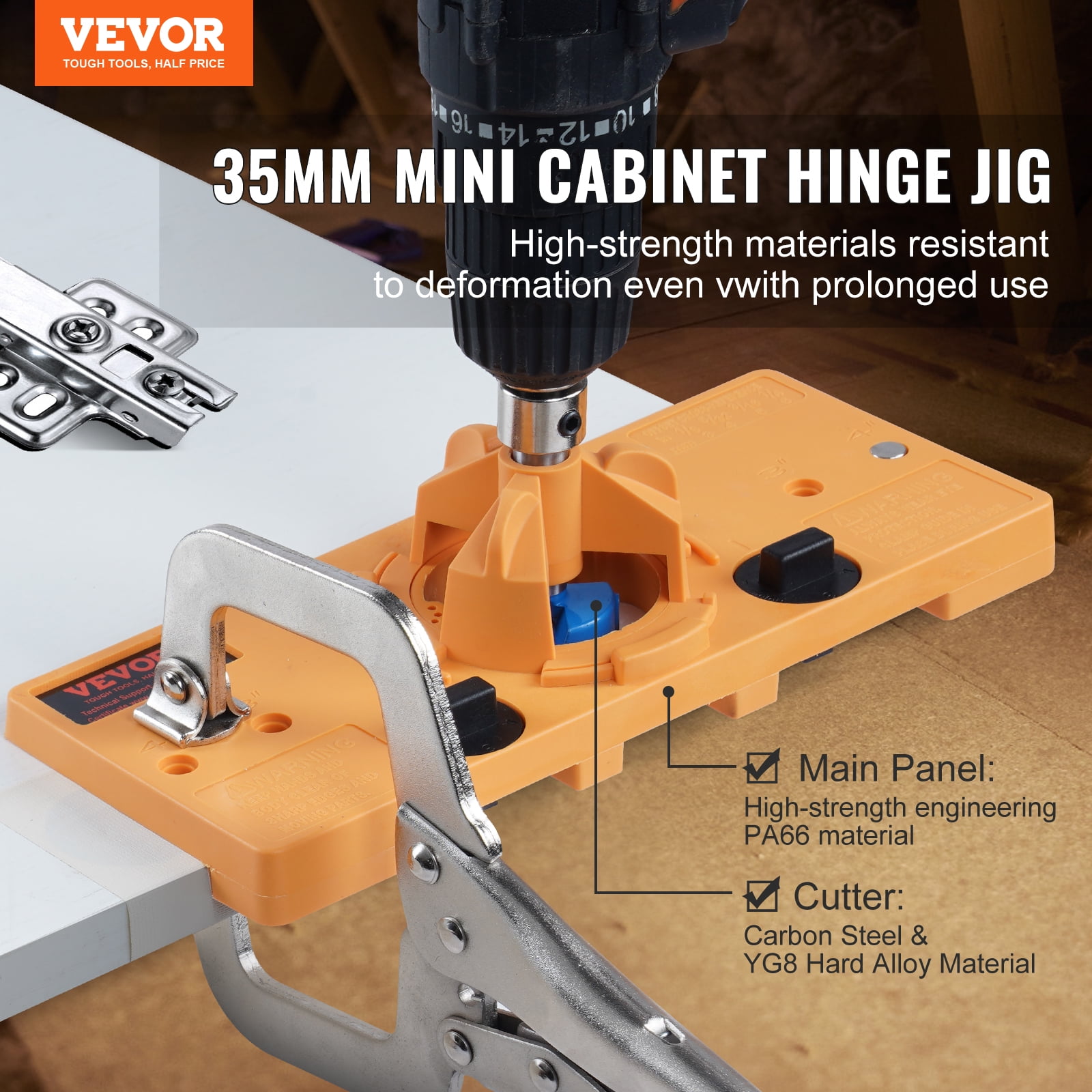

• Sturdy and Durable: The main panel of our door hinge jig is made of high-strength engineering PA66 material, while the drilling tools are made of carbon steel and YG8 hard alloy. Its overall structure is stable, ensuring durability and adaptability to harsh weather conditions, high temperatures, and moisture. It maintains strength and stability, with minimal risk of deformation or damage, even with prolonged use.
• Precision Drilling: Our hinge jig kit can precisely position holes without marking. The C-type clamp, limit positioning accessories, and the 4-stage adjustable dial (0.12''/0.16''/0.20''/0.24'') prevent hole deviation, making it easy to accomplish accurate and quick drilling work.
• User-Friendly: The concealed hinge jig is easy to operate and install without professional assistance. Just follow the 4-step instructions in the manual: Step 1, install the drilling tool and tighten the limit positioning accessories; Step 2, adjust the dial and insert the positioning rod; Step 3, secure the drill bit with the C-type clamp; Step 4, drill the 1.38'' hole and side holes in sequence, then install the hinge. You can complete the installation in just a few minutes.

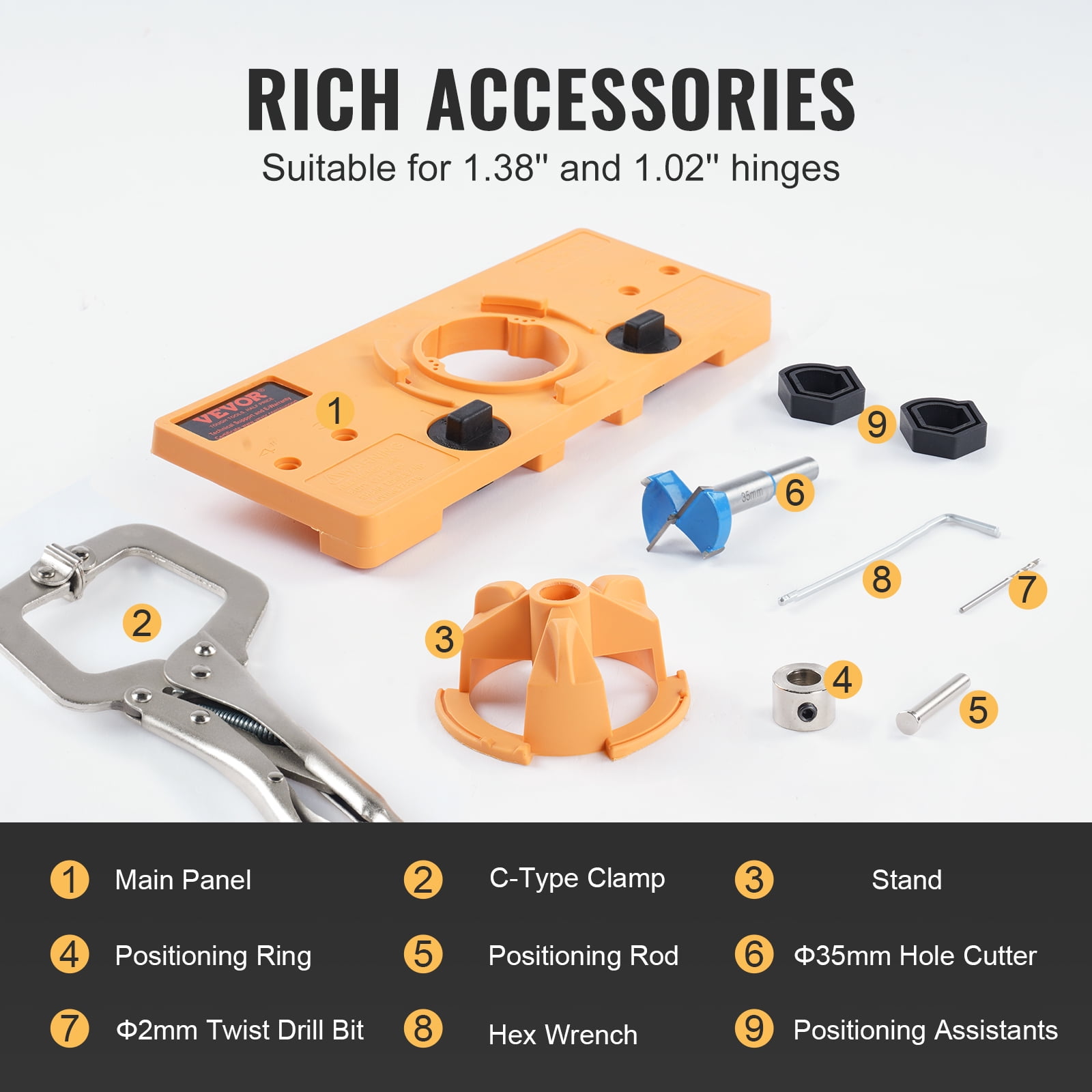

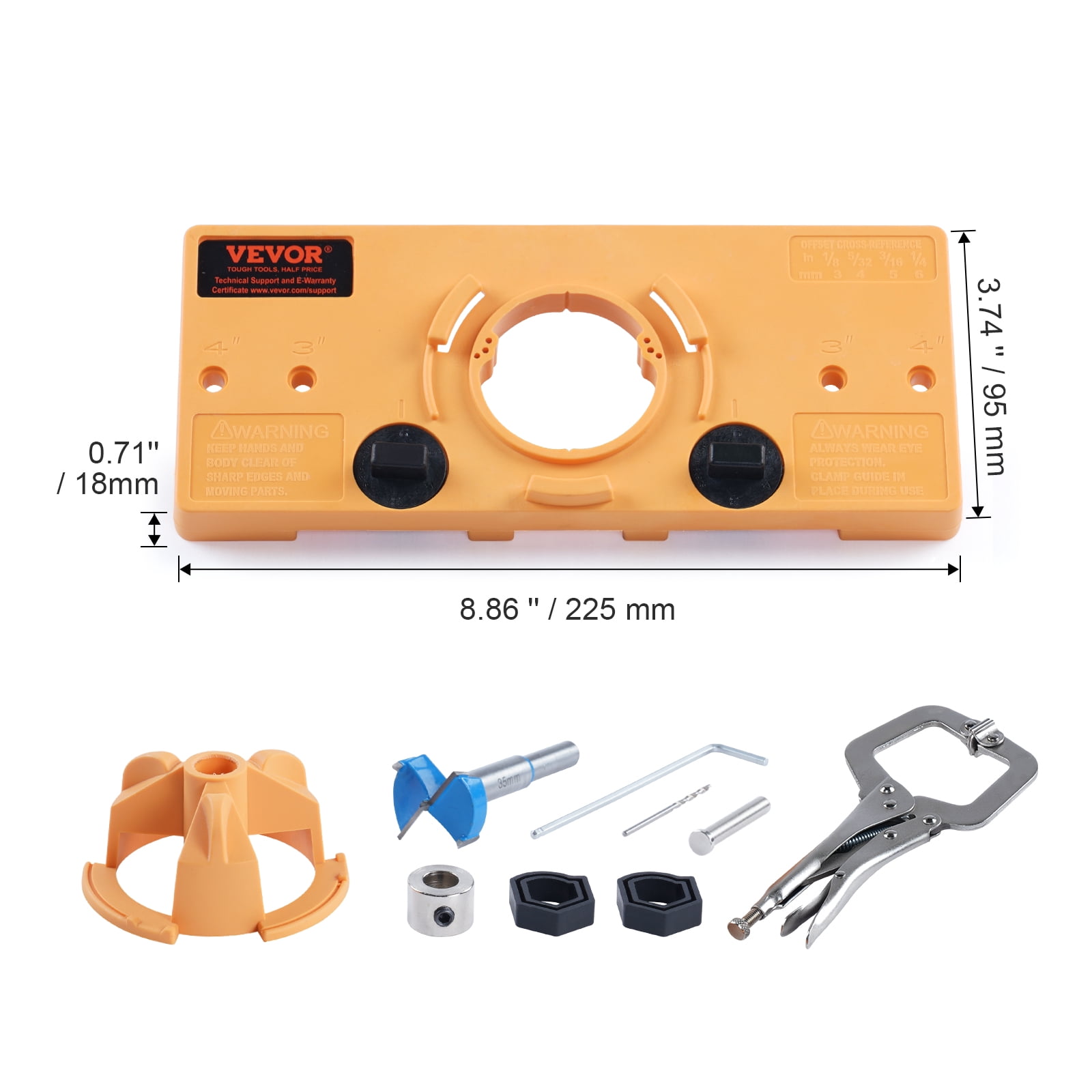

• Comprehensive Accessories: The 35mm cabinet hinge jig kit comes with a rich set of accessories, including 1 x main panel, 1 x φ35mm hole cutter, 1 x hex wrench, 1 x φ2mm twist drill bit, 1 x positioning rod, 1 x stand, 1 x positioning ring, 1 x c-type clamp, 2 x 26mm hinge hole positioning assistants. This comprehensive kit provides everything you need to handle hinge-hole drilling tasks effortlessly.
