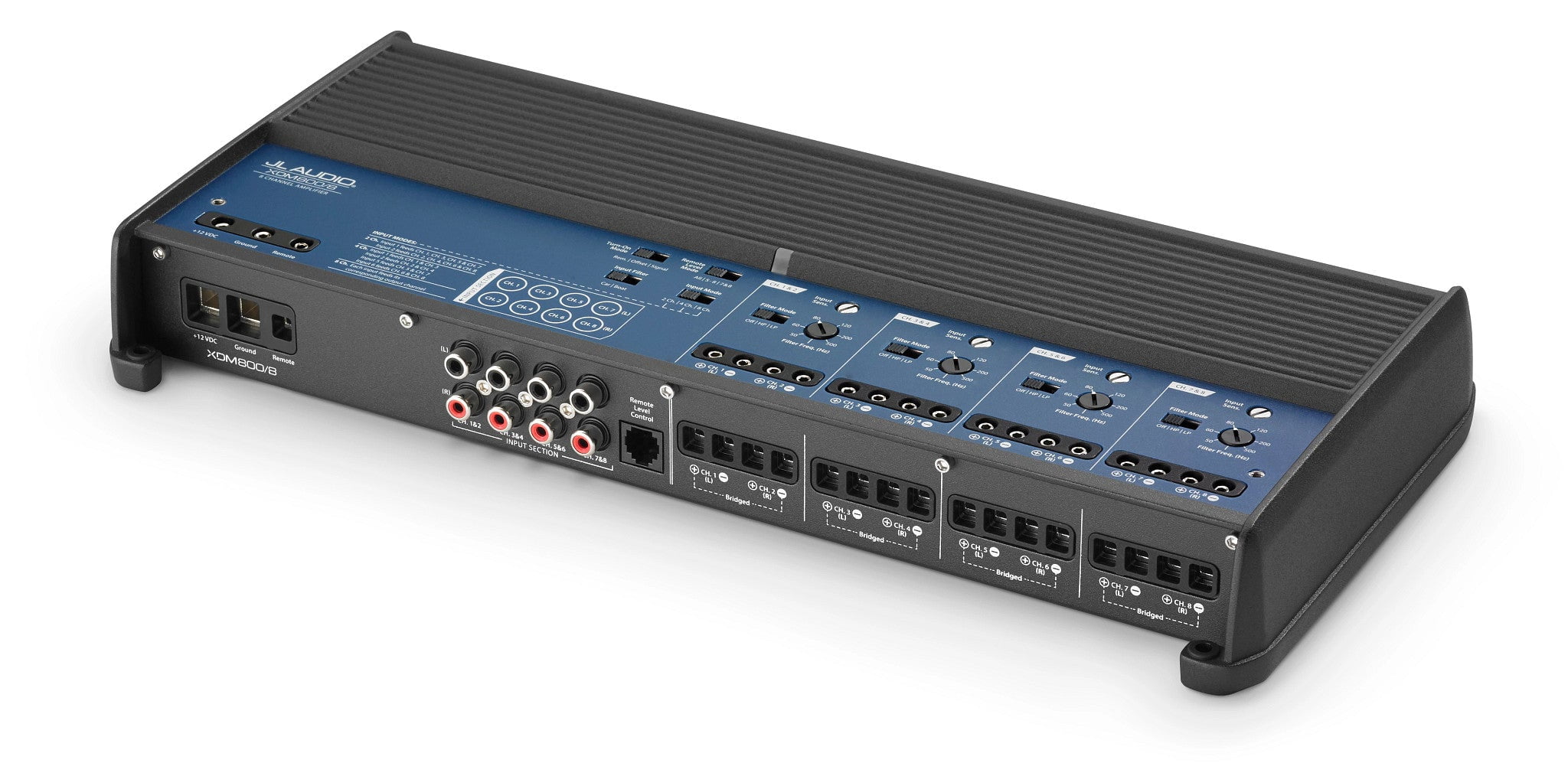

JL Audio XDM Marine Amplifier 8-Channel 800 Watt 12v
Product details
| Management number | 251728724 | Release Date | 2026/09/26 | List Price | US$460.00 | Model Number | 251728724 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p><b>JL Audio 8 Ch. Class D Full-Range Car/Marine Amplifier, 800 W</b></p>Model: XDM800/8<br><ul><li>Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8</li><li>Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4?</li><li>Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4?, plus two 4? subwoofers with 200 W each</li><li>Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4?, plus four 4? speakers with 75 W each</li><li>Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4? + rear speakers with 75 W x 2</li><li>Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4?, plus two 4? subwoofers with 200W each</li></ul><p>The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.</p><p>Suitable for car or boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.</p><p>The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the driver's seat or cockpit.</p><p>Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.</p><b>Specifications</b><br><b>Rated Continuous (RMS) Power @ 14.4 V</b>@ 4 ?75 W RMS x 8@ 2 ?100 W RMS x 8Bridged @ 4?200 W RMS x 4<b>Rated Continuous (RMS) Power @ 12.5 V</b>@ 4 ?60 W RMS x 8@ 2 ?90 W RMS x 8Bridged @ 4?180 W RMS x 4<b>General Specifications</b>Frequency Response12 Hz - 22 kHz (+0, -1dB)S/N Ratio, referred to highest rated power>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)S/N Ratio, referred to 1 W>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)Damping Factor @ 4 ?>150 / 50 HzDamping Factor @ 2 ?>75 / 50 HzTHD+N @ Rated Power<1% @ 2 ? per Ch.Input Voltage Range @ RCA Inputs200 mV - 4 V RMSMin.Copper Power / Ground Wire Gauge4 AWG wireFuse Rating80 A (AFS, AGU or MaxiFuse™)<b>Signal Processing</b>Filter Mode(s)Low-Pass or High-PassFilter Slope(s)12 dB/octaveFilter Frequency Range50 Hz - 500 HzDetented, Calibrated Filter Freq. PotentiometersYesFilter Defeat FunctionY
- XDM800/8
- MARINE AUDIO SYSTEM COMPONENTS
- Authentic Part
- 010-03119-00
| Brand | JL Audio |
|---|---|
| Rms power rating | 75 W |
| Channels | 8 |
| Impedance | 4 ohm |
| Features | Water-Resistant |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Color | Black |
| Audio output | 800 W |
| Total harmonic distortion | 1 % |
| Signal-to-noise ratio | 104 dB |
| Inputs/Outputs | RCA Inputs |
| Model | XDM800/8 |
| Vehicle type | Recreational Vehicle, Car |
| Vehicle fitment type | Specific |
| Vehicle model | XDM800/8 |
| Volts | 12 V |
| Amps | 4 Amps |
