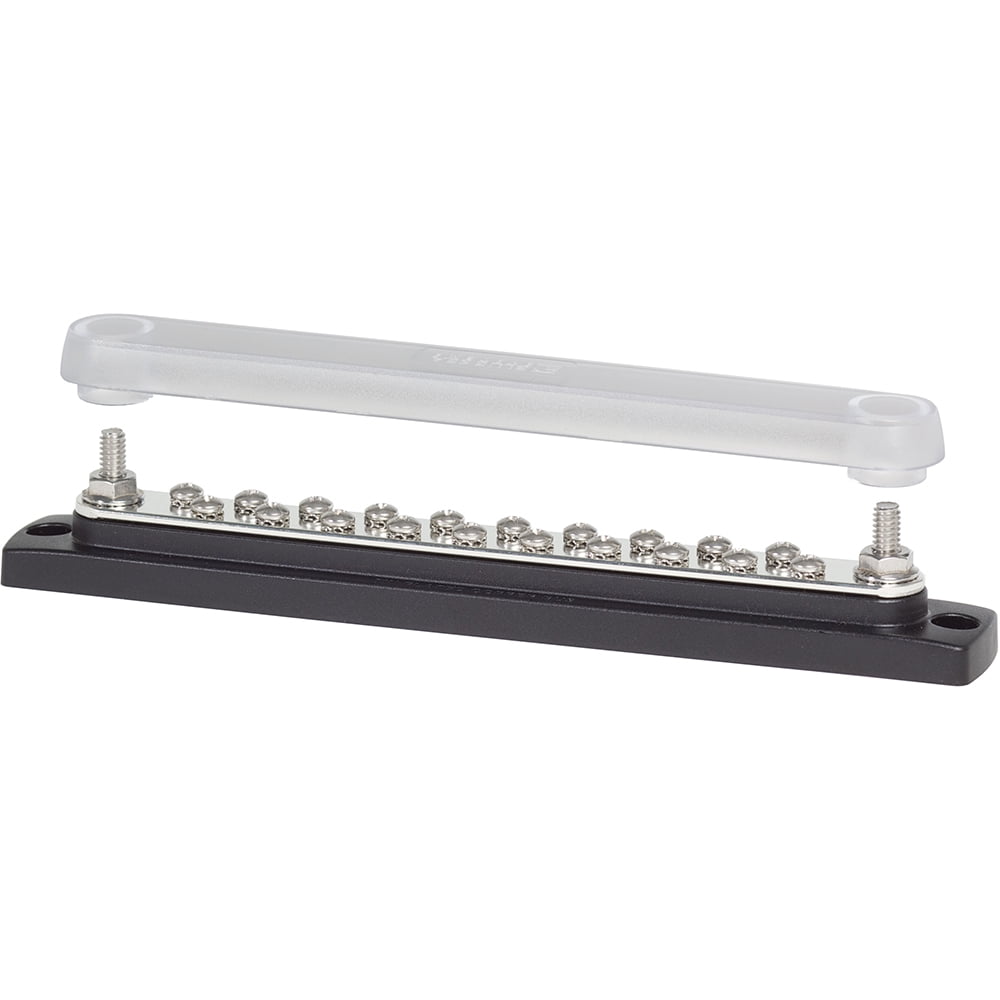

Blue Sea Systems Boat/RV 2312 Busbar 150 Amp Common Bus with Cover 20 Gang

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover. PN: 2312. Stud design provides direct terminal to bus contact for low resistant connection. Stainless steel studs and screws allow high torquing for excellent electrical contact. Tin-plated copper bus for maximum conductivity and resistance to corrosion. UL 94-VO rated (self extinguishing) base material resists high heat. Press on insulating cover attaches to studs and allows unobstructed wire access. Raised bus provides easy access to multiple wires on a single screw. 130 Amperes AC. 150 Amperes DC. Maximum Voltage Rating. 300 Volts AC. 48 Volts DC. Bus Material. Tin-Plated Copper CDA 110/UNS11000. Base Material. Glass Reinforced Polycarbonate. Cover Material. Polycarbonate. Studs. Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal. Screws. Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal. Weight. 0.58Lb

• 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with CoverPN:   2312
• Stud design provides direct terminal to bus contact for low resistant connection
• Stainless steel studs and screws allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and resistance to corrosion
• UL 94-VO rated (self extinguishing) base material resists high heat
• Press on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screwContinuous Amperage130 Amperes AC150 Amperes DCMaximum Voltage Rating300 Volts AC48 Volts DCBus MaterialTin-Plated Copper CDA 110/UNS11000Base MaterialGlass Reinforced PolycarbonateCover MaterialPolycarbonateStudsStainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminalScrewsStainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminalWeight0.58LbWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
