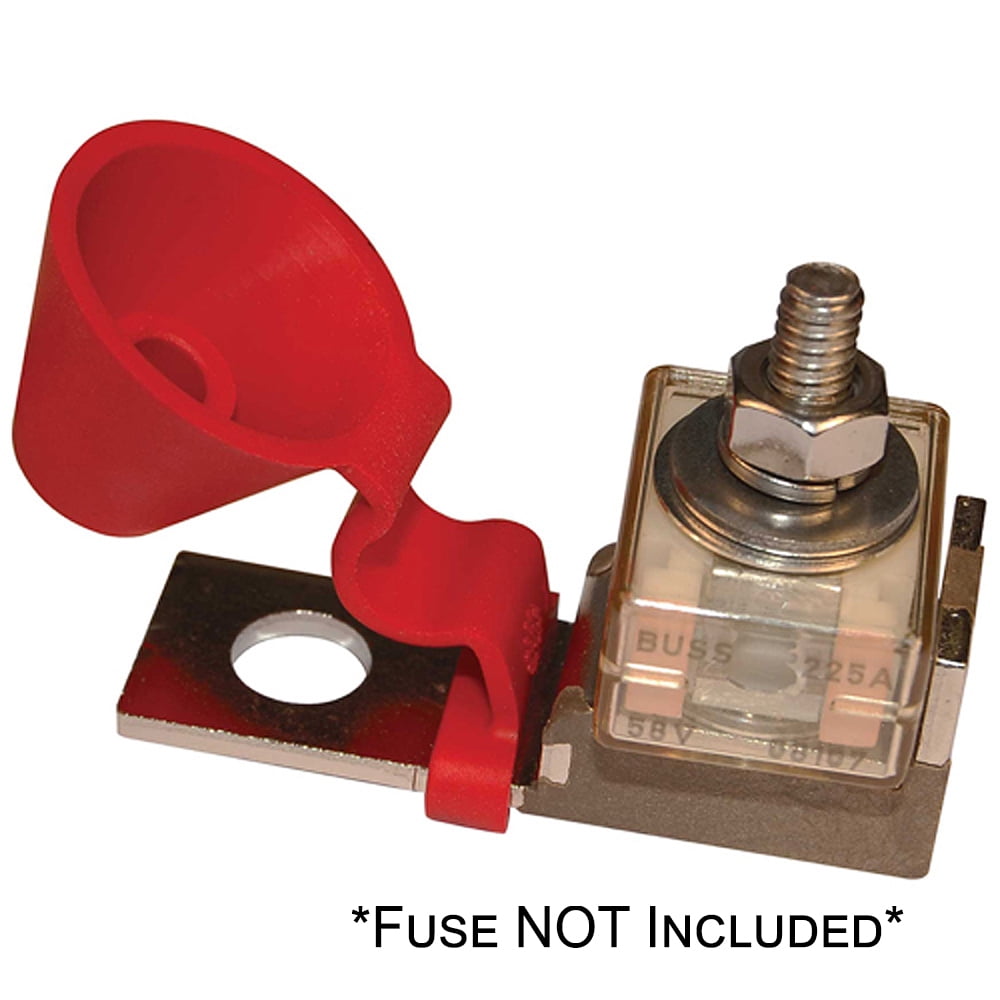

Blue Sea 5191 Terminal Fuse Block 30-300Amp

Blue Sea 5191 Terminal Fuse Block 30-300Amp New isolated stud design uses standard 5/16" hardware and permits stacking of terminals. Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection. Provides high current protection in tight space constraints. Weatherproof-suitable for small open-cockpit boats and other harsh environments. Insulating cap prevents accidental shorts. Use 5/16" or 3/8" ring terminal. Box Dimensions: 1"H x 4"W x 6"L. Weight: 0. 5lbs.<br><b>Features:</b><ul><li>Provides high current protection in tight space constraints</li><li>Weatherproof-suitable for small open-cockpit boats and other harsh environments</li><li>Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection</li><li>New isolated stud design uses standard 516 hardware and permits stacking of terminals</li><li>Insulating cap prevents accidental shorts</li><li>Use 516 or 38 ring terminal</li><li>Box Dimensions 1H x 4W x 6L</li><li><b>Brand: </b>Blue Sea Systems</li><li><b>Model Number: </b>1135-32561</li></ul><b>Shipping Details:</b>

• Voltage Max Operating: 58V DC, Amps Max Operating: 300A per block, Terminal Fuses Avail.: 30A-300A, Terminal Stud Size: 5/16"-18 (8mm), Mounting Hole Size: #10 (5mm)3/8"
• Compact, high-amp fuse—appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Weatherproof – suitable for small open-cockpit boats and other harsh environments
• Insulating cap prevents accidental shorts
• Ignition protected when used with MRBF fuses
• Fuses sold separately
